Medium Flow Pressure Regulator 1" FNPT

Medium Flow Pressure Regulator - with 1" FNPT Inlet/Outlet

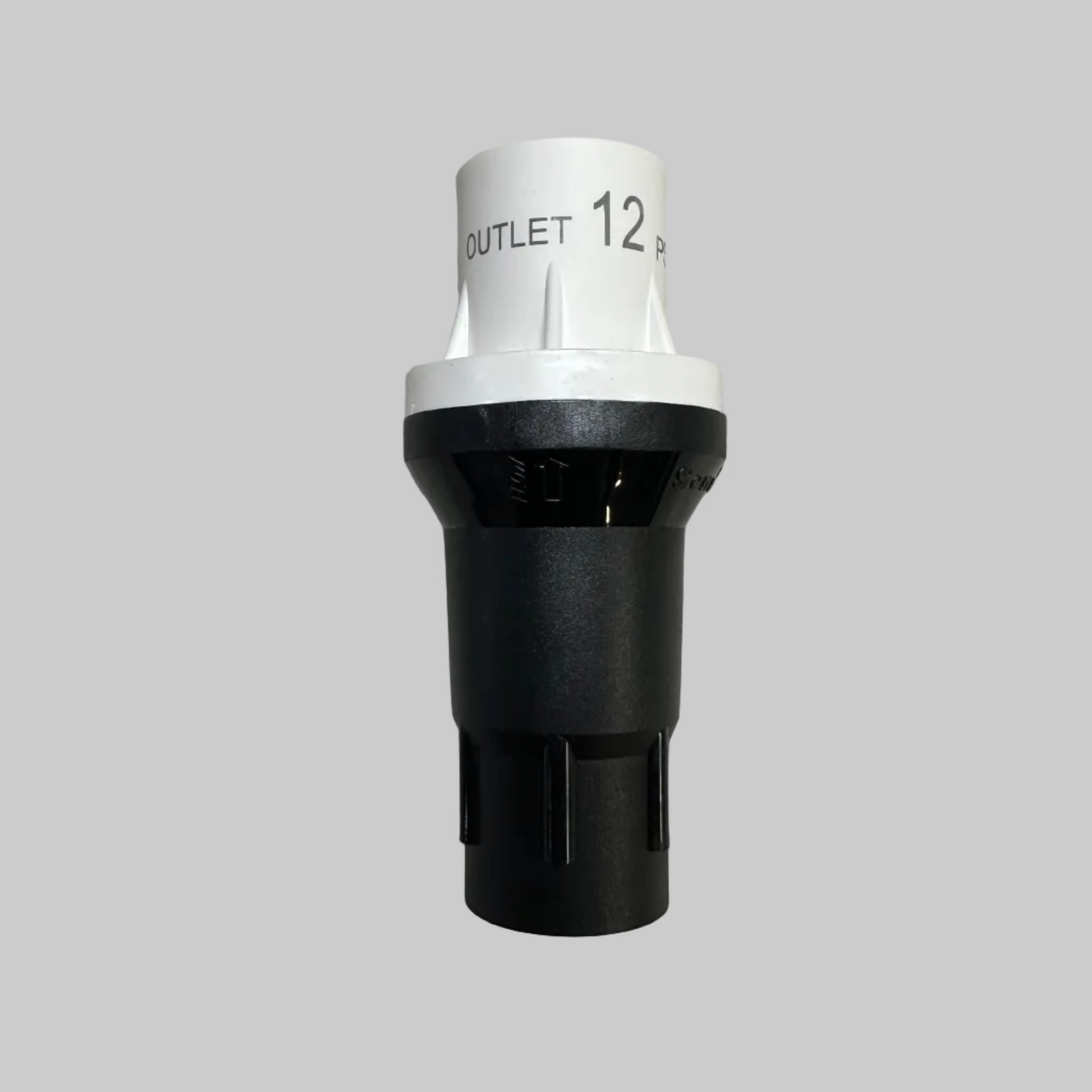

12 PSI Recommended for Use with Sumisansui Mark II and Mark 3 tubes

30 PSI Recommended for Use with Sumisansui R Wide tubes

One Medium Flow pressure regulator should flow enough water to run:

• Mark II @ ~660 feet of length
• Mark 3 @ ~570 feet of length
• R Wide @ ~165 feet of length

15 PSI can be used with many different irrigation configurations including:

• M Series tubes running off of a manifold and mainline/header system where pressure loss is affecting coverage width
• R Series tubes when you would like to run the irrigation tube at a lower pressure in the same header/mainline system as M Series and drip
• R Series tubes when you would like to run the irrigation tube at a narrower coverage width

Details:

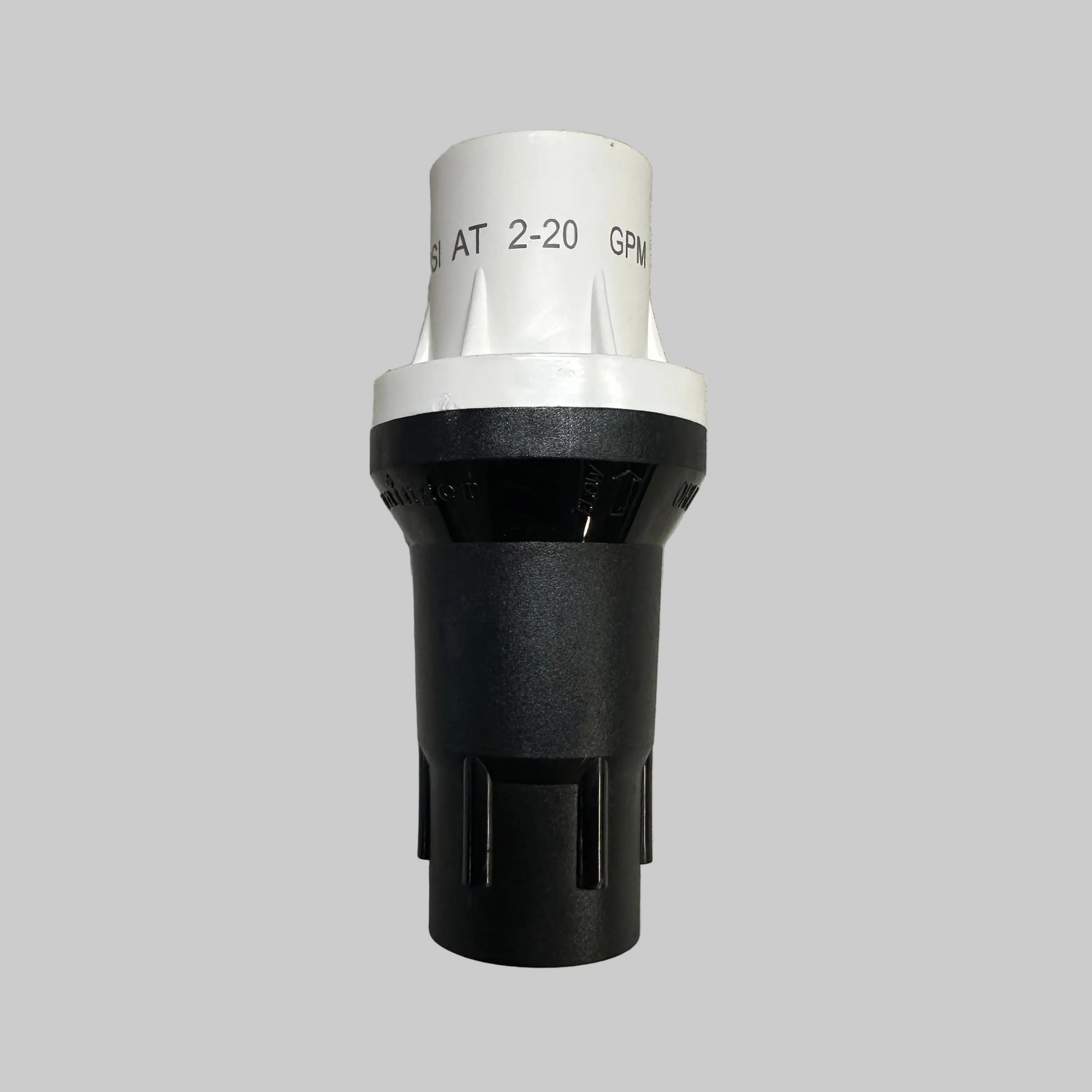

• Medium Flow Pressure Regulator is for mid-range flows of 2–20 GPM
• Perfect for Sumisansui, drip, and other low volume irrigation
• The pressure regulator shall maintain the predetermined operating pressure provided the inlet pressure is at least 5 PSI above the expected outlet pressure, but must not exceed the maximum inlet pressure rating.
• Always install pressure regulators downstream from all shut-off valves.
• Be sure to install pressure regulators in the proper direction. The arrow on the housing shows the direction of the flow and should always point downstream toward emitters.
