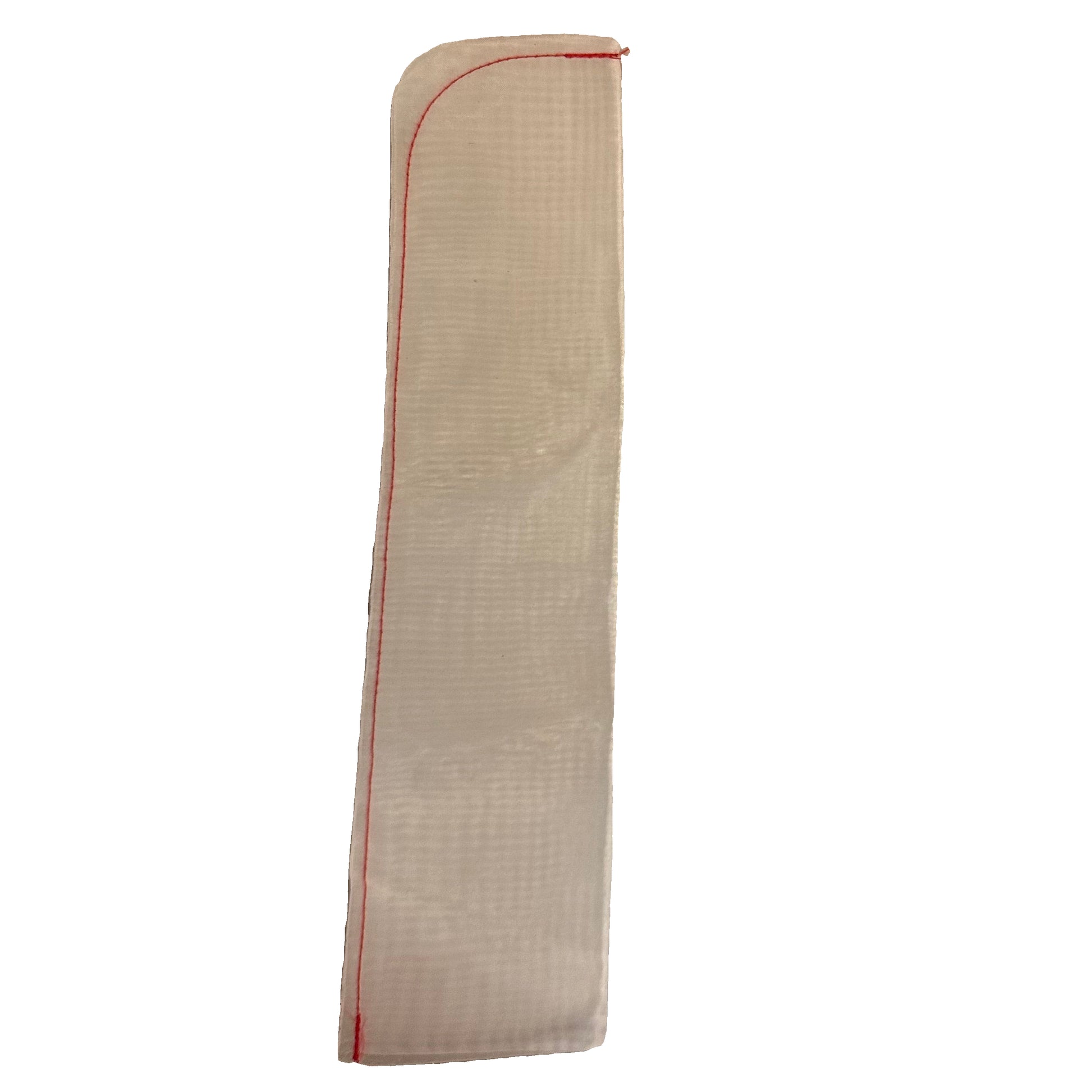

R Wide Fabric Filter 80 mesh

Fabric Filter to be used with R Series Tube Connectors and Irrigation Tubes.

80 Mesh minimum recommended filtration

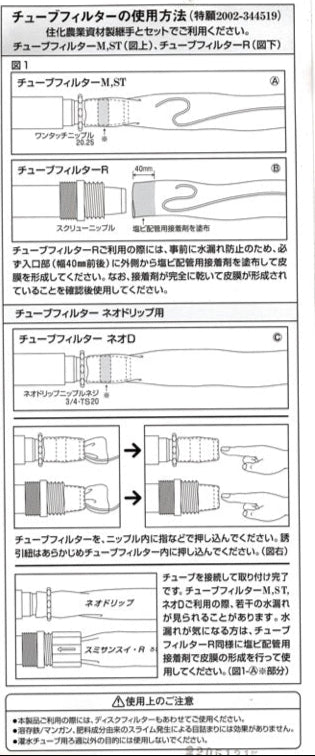

Installation Instructions:

1. Remove Retaining Ring from R Start Connector
2. Slide open end of fabric filter over the rubber sealing ring on the R Start Connector
3. Stuff the filter and string inside the R Start Connnector
4. Slide retaining ring onto the R tube
5. Slide the R tube onto the rubber sealing ring of the start connector
6. Slide retaining ring onto the start connector and turn clockwise until it is hand tight
